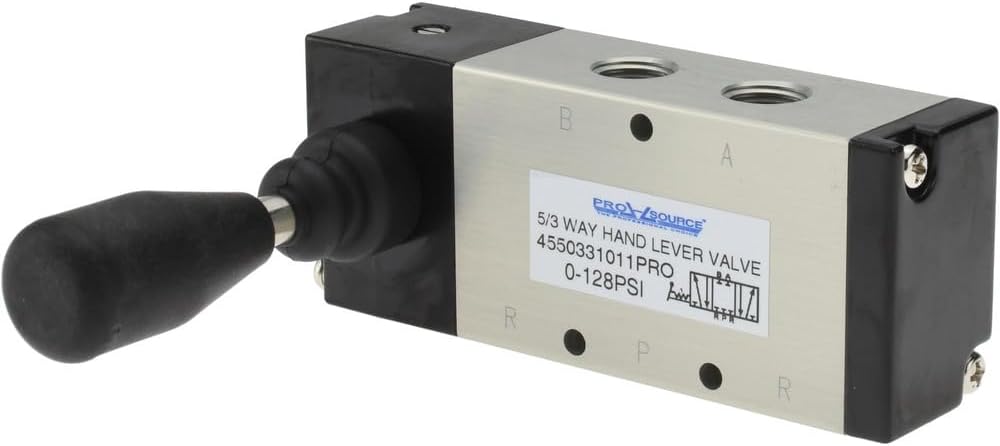

PRO SOURCE 5-Way 3-Position Manual Lever/Detent Air Valve: 128 Max PSI, 3/8" NPT Inlet & Outlet
Product details
| Management number | 222646325 | Release Date | 2026/05/04 | List Price | $35.92 | Model Number | 222646325 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
PRO SOURCE air control valve with lever/detent actuator with manual mechanical hand lever operation. Exhaust center. 5-Way, 3 Position. Maximum working pressure: 128 psi; 1.897 cv rate. 3/8" NPT inlet and outlet ports. Exhaust Center. 5-way 3-position mechanical air control valve is manually operated with the hand lever. Not a mini-valve: this valve is 4-1/2 inches in length, 4.1 inches high, and 1.8 inches and weighs just over half a pound.
- 5-way 3-position mechanical air control valve is manually operated with the hand lever
- Manual lever/detent actuator
- Maximum working pressure: 128 psi; 1.897 cv rate
- 3/8" NPT inlet and outlet ports
- Not a mini-valve: this valve is 4-1/2 inches in length, 4.1 inches high, and 1.8 inches and weighs just over half a pound.
| Size | 4.5" x 4.1" x 1.8" inches |
|---|---|
| Brand Name | PRO SOURCE |
| Unit Count | 1.0 Count |
| Valve Type | Air Control Valve |
| Thread Size | 3/8 |
| Thread Type | NPT |
| Manufacturer | MSC Industrial |
| Model Number | Lever/Detent, 3/8" NPT |
| Exterior Finish | Stainless Steel |
| Number of Ports | 3 |
| Maximum Pressure | 128 Pound per Square Inch |
| Inlet Connection Size | 4.5 Inches |
| Inlet Connection Type | National Pipe Tapered |
| Outlet Connection Size | 0.38 Inches |
| Outlet Connection Type | MNPT |
| Manufacturer Part Number | 78261146 |
